Stereo 3 Amplifier

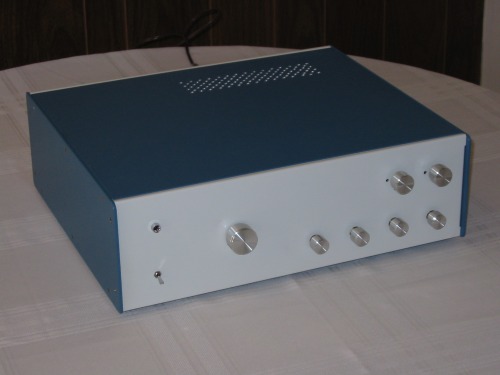

stereo3

This was my third stereo amplifier project. I designed and built it in 1986 and it remained in use up until 2000. It is a modest 25 watt/channel integrated amplifier. The circuit topology is a fully complementary bipolar transistor amplifier.
